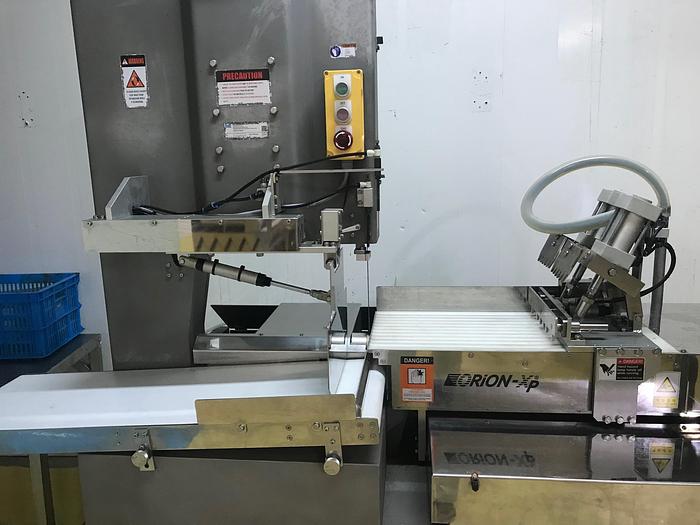

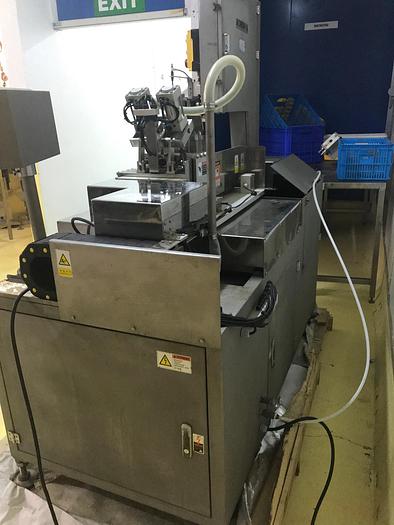

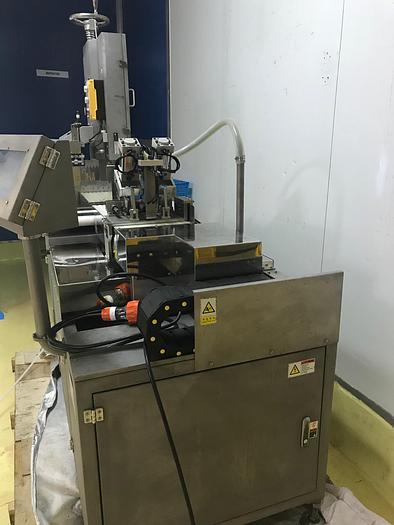

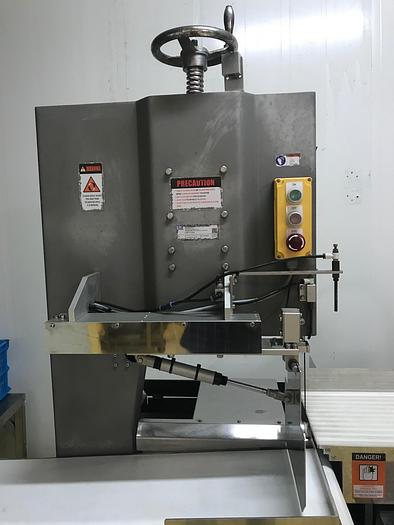

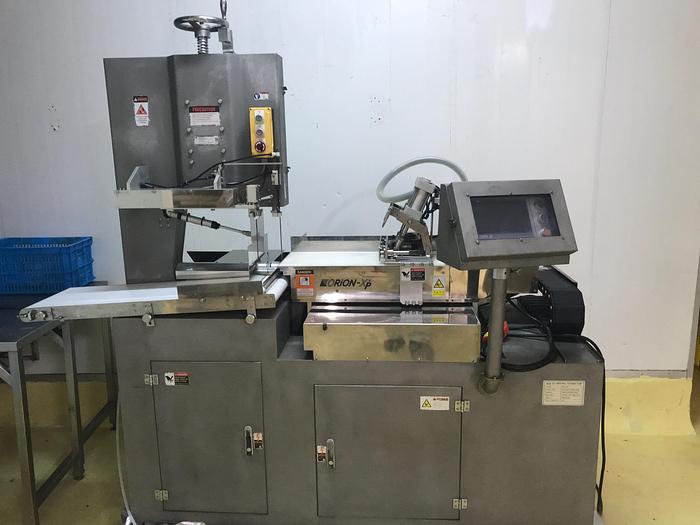

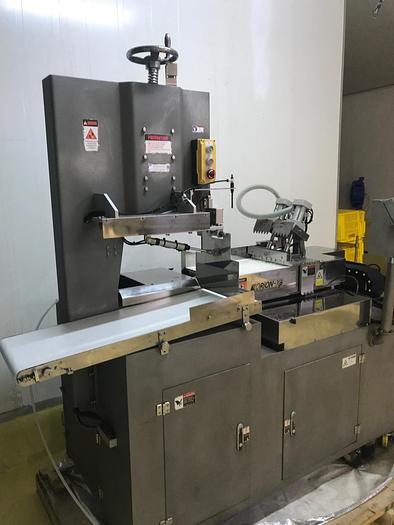

2016 ORION XP SRS-300 Automatic Band Saw & Bone in Meat Cutter

This machine is like new having only been used for 50 hours on samples.

Safety first design

Fully automated FROZEN RIB, BONE IN meat and frozen TUNA processing that requires NO REPETITIVE hand works and realizes NO FATAL HAND INJURY.

High Speed production

Realized by high speed inverter motion control, Max. sl icing

speed 17min/time s.t. Frozen beef rib without using human

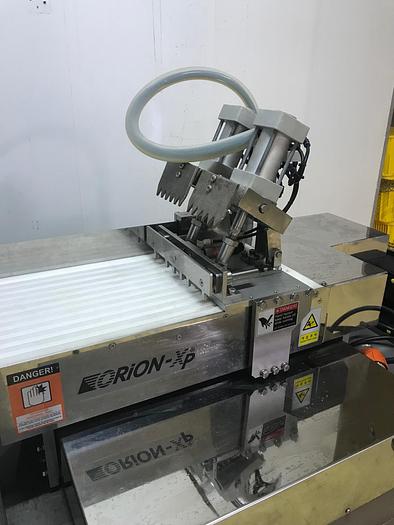

hands but automatic ally running chute.

Uniform slice thickness production

Slice operation range from 1mm to 50mm, saw blade speed

control is also available making ALL SAME THICKNESS

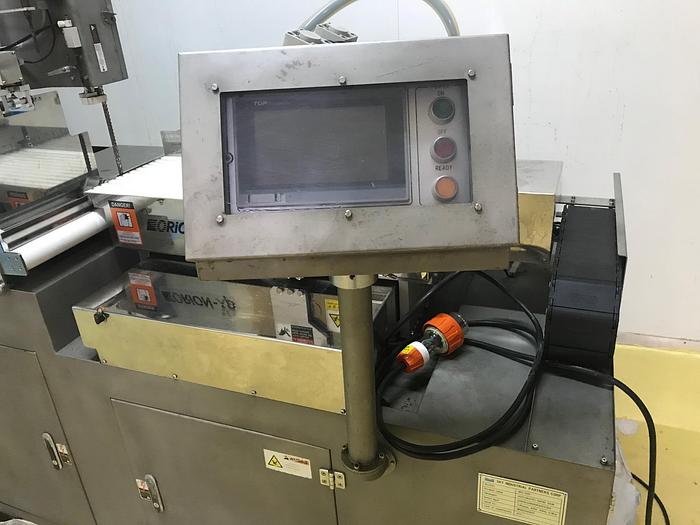

SLICES by touch panel input

Dimension 1160(W) x 23 5 0(L) x 19 0 0(H) mm

Power 3ø 220/380 V, 6 HP , 50/

Loading size 300(W) x 360(L) x 100(H) mm

Air comp. 8 bar.

Saw blade 3283 x 16 x 0.5(0.6)mm

Slice thickness 1 ~ 50mm

Capacity 17~30 sec /time (s.t. Beef Rib) , 3600pcs/hr.

Ope. meat Temp. Max.30 deg C

Net weight 500Kg
