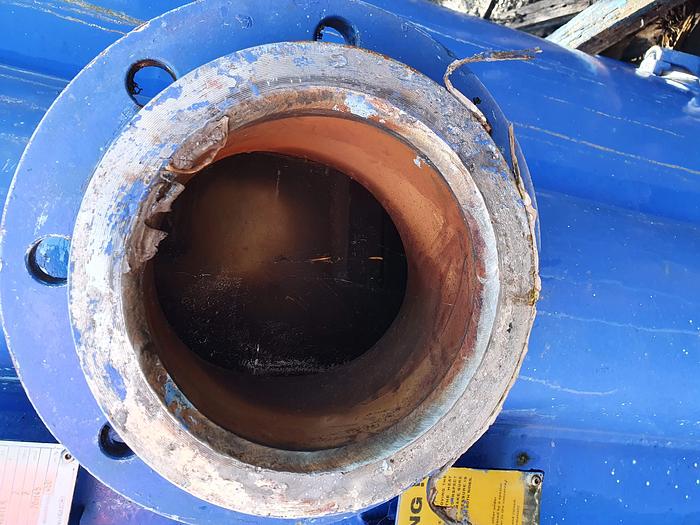

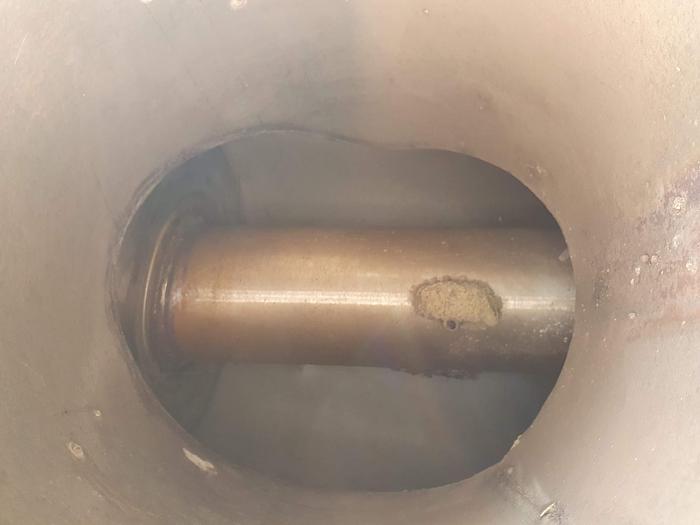

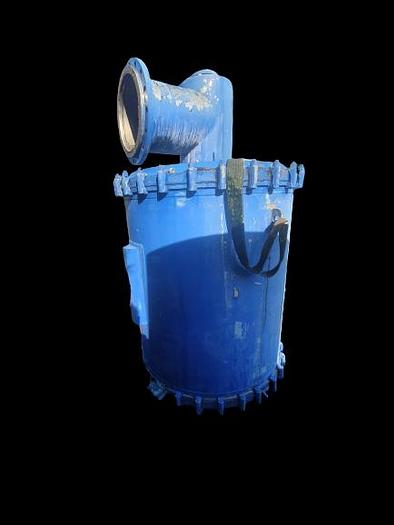

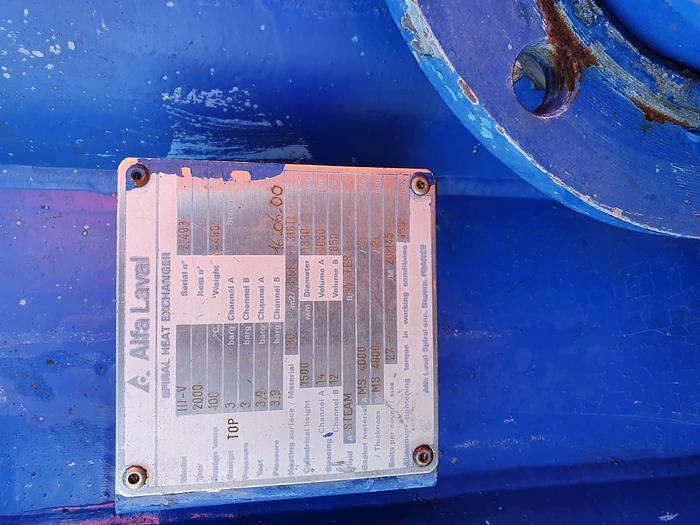

2000 ALFA LAVAL SPIRAL HEAT EXCHANGER MODEL 111-V

LAST USED ON A WASTE HEAT RECOVERY SYSTEM

Design Temp. 100C

Pressure. 3 BAR

Weight .  4450 KG

Heating Surface. 130m2

Material 310L and 316TI

Cylindrical height  1500mm

Diamaeter  1330mm

Spacing  Channel A   14   Dia  1330mm

       Channel B   12   Dia   850mm

FLUID  Channel A STEAM

     Channel B WATER

Improving sustainability with Alfa Laval’s spiral heat exchangers

Minimal fouling, or clogging, in duties involving very dirty, highly viscous or particulate media, ensures uptime

Easy-to-open design makes cleaning quick and simple, ensuring low maintenance costs

Reduced pipework and steel structures means lower installation costs

Increased energy savings and reduced emissions thanks to thermal efficiencies 2-3 times higher than comparable shell-and tube exchangers

WASTE HEAT RECOVERY

The secret is the true counter-current flow. It enables crossing temperature situations where the cold fluid can be heated to temperatures very close to those of the hot fluid.

The closer the temperature approach between two fluids, the more heat is recovered.

This effect is enhanced by the high turbulence in the unit due to the single channel geometry and the arrangement of the studs.

Dead spots eliminated

The single-channel geometry and stud arrangement offer other important benefits as well.

The fluid is fully turbulent at a much lower velocity than in straight tube heat exchangers, and each fluid travels at constant velocity

throughout the whole unit.

This eliminates the risk of dead spots and stagnation.
